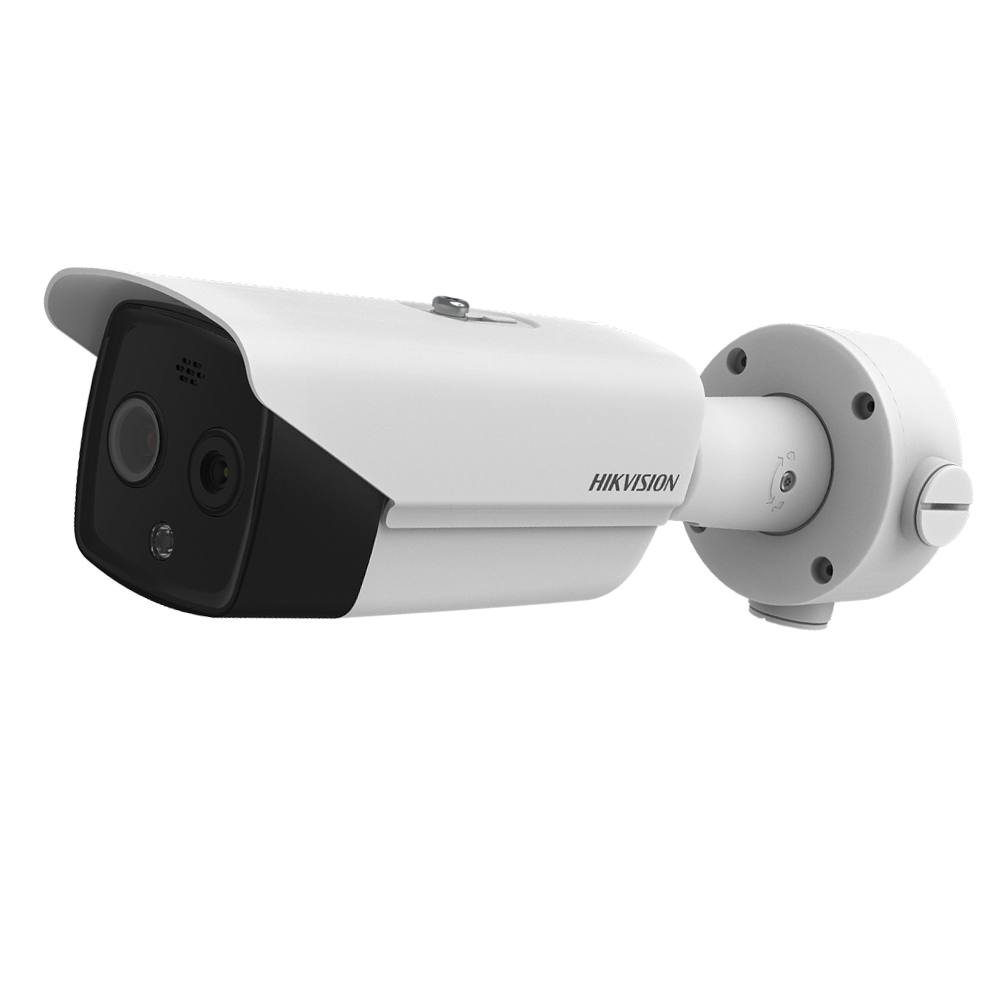

| Model | DS-2TD2617B-6/PA | Brand | Hikvision | | Spec | 4MP | | |
High sensitivity thermal module with 160 x 120 resolution NETD is less than 40 mk (@25° C, F#=1.1) Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR Support fever screening Support audio alarm
Thermal Image SensorVOx Uncooled Focal Plane Arrays Resolution160×120 Pixel Interval17μm Response Waveband8μm to 14μm NETDLess than 40 mK (@25°C,F#=1.1) Focal Length6.2mm IFOV2.74 mrad ApertureF1.1 Field Of View25° × 18.7° (H × V) Min. Focusing Distance0.6 m
Optical Image Sensor1/2.7" Progressive Scan CMOS Resolution2688×1520, 4MP Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON) Field Of View39.42° × 22.14° (H × V) Focal Length8mm Shutter Speed1s to 1/100,000s White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp Day & Night ModeIR cut filter with auto switch WDR120 dB
Network Main StreamThermal: 25fps(1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720);Optical: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720) Sub StreamThermal: 25fps(704 × 576, 352 × 288, 320 × 240);Optical: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144);Optical: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265 Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP over HTTPS Simultaneous Live ViewUp to 20
Interface ClientiVMS-4200, Hik-Connect Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51 Alarm Input2-ch inputs (0-5 VDC) Alarm Output2-ch relay outputs, alarm response actions configurable Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% Audio OutputLinear Level; Impedance: 600Ω Communication Interface1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface On-Board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
General Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A Power ConsumptionPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W 12 VDC ± 20%: 0.5 A, max. 6 W Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53") Weight1.76 kg (3.88 lb)
|
